Amprobe® Test Tools is a test tool with features such as full range capacitance and resistance measurement, dual zero adjustment, and low ohms range.
The CR50A Component Tester is a handheld device for sorting, matching, QC inspecting, and verifying components and circuits. It offers dual zero‑adjust pots for stray nulling, a special low‑ohms range, an oversized at‑a‑glance display, and premium test leads with alligator clips.

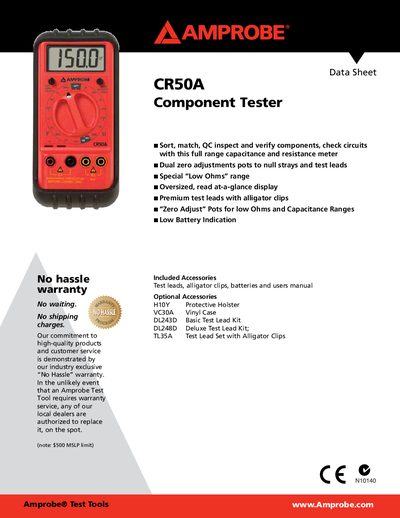

The data sheet lists the instrument’s electrical specifications, operating temperature range, dimensions, weight, battery life, and included accessories, as well as optional accessories and a one‑year warranty.
| Display Update Rate | 2/sec, nominal |
|---|---|
| Power | Standard 9 V transistor battery |
| Battery Life | Alkaline 200 hours |
| Operating Temperature | 0 °C to +50 °C (32 °F to 122 °F), <70 % RH |
| Dimensions (W × L × H) | 15.1 cm × 7.0 cm × 3.8 cm (6.1" × 2.8" × 1.3") |
| Weight (incl. batteries) | 200 g (8.02 oz) |
| Resistance Range | 20 Ω to 20 MΩ |
| Capacitance Range | 200 pF to 20 mF |
| Test Voltage | <3.5 V |
| Warranty | One year |
The CR50A comes with a one‑year warranty.
The package includes test leads, alligator clips, batteries, and the user manual.
The alkaline battery provides up to 200 hours of operation.
