Amprobe® Test Tools is a professional meter with a wide range of measuring features, including AC/DC voltage, current, resistance, frequency, and capacitance, etc. The meter features True RMS, backlight display, non-contact voltage detection, audible continuity, auto-check feature, and automatic range selection. It also has a large, easy-to-read LCD display, auto power off, low battery indication, data hold, and voltage overload protection for all functions.

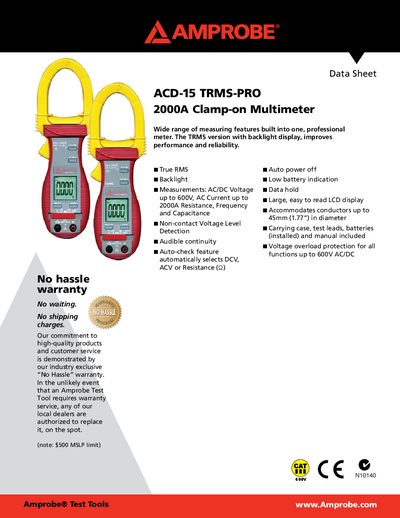

The ACD-15 TRMS-PRO 2000A is a professional True RMS clamp‑on multimeter with a backlit LCD, auto power‑off, low‑battery indication, and non‑contact voltage detection. It measures AC/DC voltage up to 600 V, AC current up to 2000 A, resistance, frequency, capacitance, and includes audible continuity and diode testing.
The datasheet lists detailed electrical specifications, accuracy tables, input impedances, safety certifications, and supplied accessories such as test leads, a carrying case, and the user manual. Physical dimensions are 224 mm × 78 mm × 40 mm and it operates on two AAA batteries.
| Maximum AC Voltage | 600 V |
|---|---|
| Maximum AC Current (Clamp‑on) | 2000 A RMS |
| Display Resolution | 3‑5/6 digits, 6000 counts LCD |
| Update Rate | 5 updates per second |
| Low Battery Threshold | ≈ 2.4 V |
| Operating Temperature Range | 0 °C to 40 °C |
| Frequency Measurement Range | 10 Hz – 30 kHz |
| Jaw Opening / Conductor Diameter | 45 mm max |
It can measure up to 2000 A RMS continuous with the clamp‑on jaws.
The meter has a 3‑5/6 digit LCD display with 6000 counts.
The package includes test leads, a carrying case, and the user manual.
