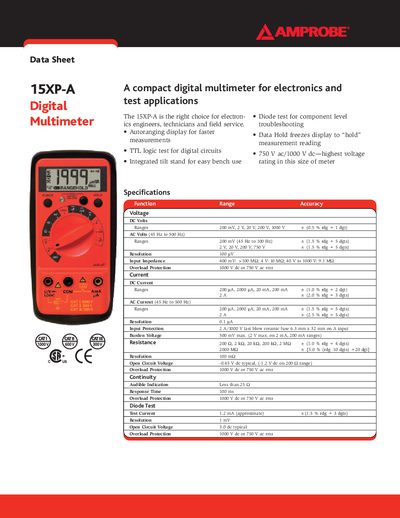

The 15XP-A Digital Multimeter is a compact digital multimeter for electronics and test applications. The 15XP-A is the right choice for electronics engineers, technicians and field service.
The Amprobe 15XP-A is a compact digital multimeter designed for electronics, test, and field‑service applications. It offers autoranging, data‑hold, TTL logic testing, and an integrated tilt stand for convenient bench use.
Key specifications include DC voltage ranges up to 1000 V, AC voltage up to 750 V, 20 MHz frequency measurement, 100 pV resolution, and a 3‑½‑digit LCD display. The unit runs on a single 9 V battery with typical 200 hour life, measures 155 mm × 72 mm × 32 mm, and weighs about 210 g. Included accessories are test leads, a 2 A/1000 V fuse, a Magne‑Grip™ holster, and the user manual.
| DC Voltage Range | 200 mV – 1000 V |
|---|---|
| AC Voltage Range | 200 mV – 750 V (45 Hz‑500 Hz) |
| Resolution (Voltage) | 100 pV |
| DC Current Range | 200 µA – 200 mA |
| AC Current Range | 200 µA – 200 mA (45 Hz‑500 Hz) |
| Frequency Range | 20 MHz |
| Dimensions (H×W×D) | 155 mm × 72 mm × 32 mm |
| Weight | ≈ 210 g (including battery) |
| Battery Life | ≈ 200 hours (typical) |
The meter is rated for up to 750 V AC or 1000 V DC.
The built‑in 9 V battery provides about 200 hours of typical operation.
Included are a pair of test leads (TL245), a 2 A/1000 V fuse, a 9 V battery, a Magne‑Grip™ holster with magnetic strap, and the user manual.
It features a 3‑½‑digit LCD display with a maximum reading of 1999.
