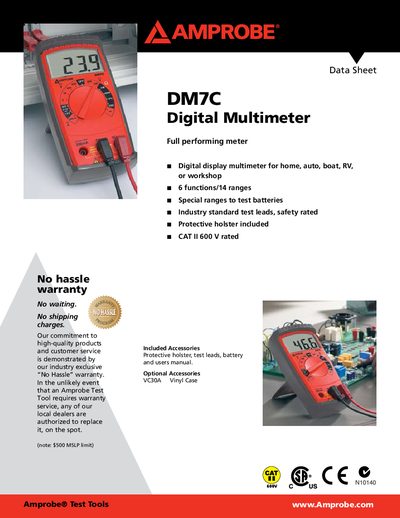

This document is a data sheet for Amprobe® Test Tools, which introduces the features and characteristics of the DM7C Digital Multimeter. It is a digital display multimeter suitable for home, auto, boat, RV, or workshop use. It has 6 functions and 14 ranges, with special ranges for testing batteries. It comes with industry standard test leads, safety rating, and a protective holster. It is CAT II 600 V rated and is a full-performing meter. The included accessories are protective holster, test leads, battery, and user manual. The optional accessory is VC30A vinyl case and it is rated for 600V.
The Amprobe DM7C is a digital multimeter designed for home, automotive, boat, RV, and workshop use. It offers six functions across fourteen ranges, including special battery test ranges.
Key specifications include a 3‑½‑digit LCD with 1999 counts, a 2‑second display update rate, CAT III 600 V rating, and a 9 V battery delivering up to 500 hours of operation. The unit ships with a protective holster, test leads, battery, and user manual, with optional accessories such as a vinyl case available.
| Display resolution | 3‑1/2 digit LCD, 1999 counts |
|---|---|
| Display update rate | 2 per sec. nominal |
| Power supply | 9 V battery, NEDA 1604 |
| Battery life | Alkaline 500 hours (approx.) |
| Operating temperature | 0 °C to +50 °C, 0‑80 % RH |
| Storage temperature | -10 °C to +60 °C, batteries removed |
| Dimensions (H×W×D) | 17 cm × 8.5 cm × 5 cm |
| Weight | 410 g (incl. battery and holster) |
| Fuse rating | 200 mA / 600 V |
| CAT rating | CAT III 600 V |
The DM7C comes with a one‑year warranty.
It includes a protective holster, test leads, a battery, and the user manual.
The multimeter features a 3‑½‑digit LCD with 1999 counts.
It is rated for CAT III 600 V.
