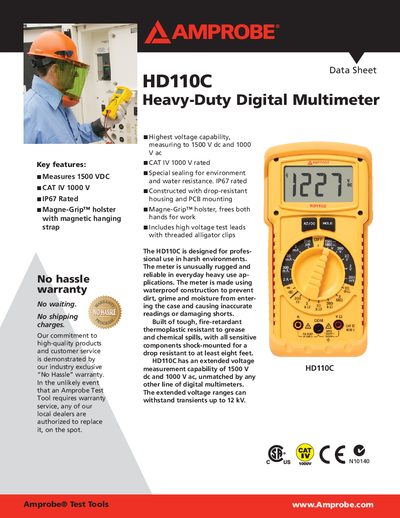

This document presents the data sheet and features of Amprobe® Test Tools. The HD110C is a heavy-duty digital multimeter with features such as measuring up to 1500 VDC CAT IV 1000 V, IP67 rating, waterproof construction, drop resistance, and high voltage test leads.
The HD110C is a rugged digital multimeter designed for professional use in harsh environments. It offers a high voltage capability of 1500 V DC and 1000 V AC, CAT IV rating, and IP67 protection, making it suitable for demanding field work.
The datasheet lists detailed electrical specifications, battery life, dimensions, and included accessories such as heavy‑duty test leads, a Magne‑Grip holster, and a hex wrench, along with optional accessories for expanded functionality.
| DC Voltage Range | 200 mV – 1500 V |
|---|---|
| AC Voltage Range | 200 mV – 1000 V |
| Accuracy (DC Volts) | +(0.1 % rdg+2 dgts) |
| Input Impedance | 10 MΩ |
| Battery Life (alkaline) | 500 hours typical |
| Dimensions (HxWxD) | 200 × 102 × 59 mm |
| Weight (incl. battery) | 642 g (20 oz) |
| Operating Temperature | 0 °C to +50 °C |
| IP Rating | IP67 |
| Transient Protection | 12 kV impulse |
The HD110C can measure up to 1500 V DC and 1000 V AC.
The battery lasts about 250 hours with carbon‑zinc cells and up to 500 hours with alkaline cells.
Included accessories are heavy‑duty CAT IV 1000 V test leads, a battery, a hex wrench, a Magne‑Grip flex strap, and the user manual.
