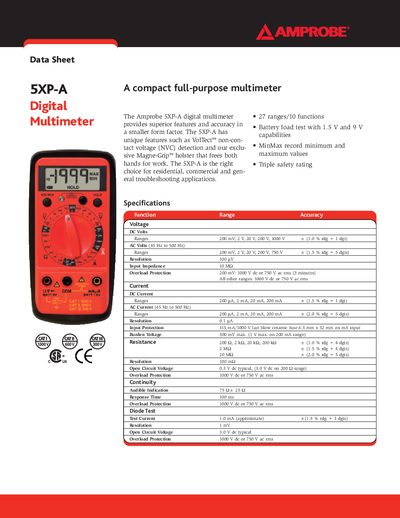

The 5XP-A digital multimeter is a compact, full-purpose multimeter that provides superior features and accuracy in a smaller form factor. The 5XP-A has unique features such as VolTect™ non-contact voltage (NVC) detection and our exclusive Magne-Grip™ holster that frees both hands for work. The 5XP-A is the right choice for residential, commercial and general troubleshooting applications.
The Amprobe 5XP-A is a compact, full‑purpose digital multimeter designed for residential, commercial and general troubleshooting. It offers unique features such as VolTect™ non‑contact voltage detection and an exclusive Magne‑Grip™ holster that frees both hands for work.
Key specifications include multiple voltage and current ranges, high input impedance, 3‑1/2 digit LCD display, automatic polarity indication, and overload protection up to 1000 V DC/750 V AC. The meter runs on a single 9 V battery with typical 200‑hour life, measures 155 mm × 72 mm × 32 mm, and weighs about 210 g.
| DC Voltage Ranges | 200 mV, 2 V, 20 V, 200 V, 1000 V |
|---|---|
| AC Voltage Ranges | 200 mV, 2 V, 20 V, 200 V, 750 V (45 Hz‑500 Hz) |
| DC Current Ranges | 200 pA, 2 mA, 20 mA, 200 mA |
| AC Current Ranges | 200 pA, 2 mA, 20 mA, 200 mA (45 Hz‑500 Hz) |
| Input Impedance | 10 MΩ |
| Resolution (Voltage) | 100 µV |
| Battery Type | Single 9 V battery (NEDA 1604, JIS O06P, IEC 6F22) |
| Battery Life | ≈200 hours (typical) |
| Dimensions (H × W × D) | 155 mm × 72 mm × 32 mm |
| Weight | ≈210 g (7.4 oz) including battery |
The meter provides about 200 hours of typical operation with a carbon‑zinc 9 V battery.
It operates from 0 °C to 50 °C at less than 70 % relative humidity.
The device weighs approximately 210 g (7.4 oz) with the battery installed.
