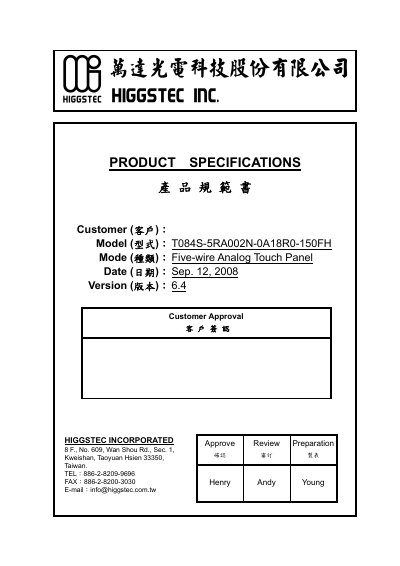

This document is a product specification book for Wanda Optoelectronics Technology Co., Ltd., which describes the features and characteristics of the T084S-5RA002N-0A18R0-150FH five-wire analog touch panel.
This document provides the full product specification for the Wanda T084S-5RA002N-0A18R0-150FH five‑wire analog resistive touch panel. It outlines the intended application, key features, and the range of operating conditions the panel is designed to meet.
Key data include precise mechanical dimensions, electrical loop resistance, linearity, transparency, and durability test results. The sheet also details mounting guidelines, inspection methods, and warranty terms to assist integrators and system designers in implementing the panel correctly. This manual is written in Chinese.
| Endurance Voltage | DC 50 V for 60 s |
|---|---|
| Reliability Test Condition | 70 °C / 90 %RH, 500 h |
| Durability Knock Test | 35 000 000 cycles |
| Warranty | 2‑year limited warranty |
Wanda provides a 2‑year limited warranty on all five‑wire analog products.
The panel is rated for 35 million knock‑test cycles.
