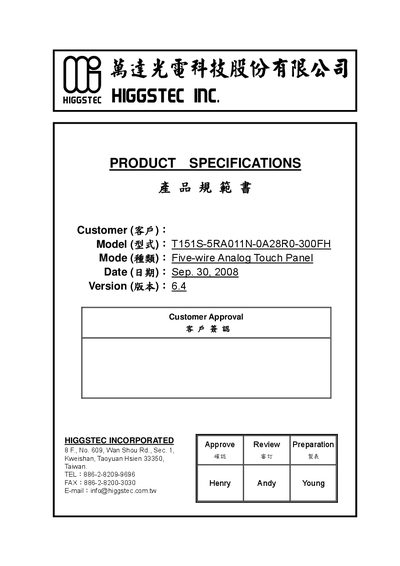

This document is the product specification of Wanda Optoelectronics Technology Co., Ltd., which describes the features and characteristics of the T151S-5RA011N-0A28R0-300FH five-wire analog touch panel.
This document provides the full specification for the HIGGSTEC T151S-5RA011N-0A28R0-300FH five‑wire analog resistive touch panel. It covers general dimensions, environmental limits, optical and electrical performance, mechanical strength, reliability and durability tests, as well as inspection methods and handling cautions.
Key sections include the panel type and input mode, detailed mechanical dimensions, transparency and haze values, loop resistance limits, operating force, temperature and humidity ranges, impact and static load tests, and recommended storage and cleaning procedures. This manual is written in Chinese.
| Type | Five‑Wire Analog Resistive |
|---|---|
| Input Mode | Stylus or Finger |
| Dimensions | 356.01+0.30 x 264.39+0.30 mm |
| Transparency | 80% |
| Haze | 8% |
| Loop Resistance X | >5000 Ω |
| Loop Resistance Y | >5000 Ω |
| Operating Force (Stylus) | 0.8 N (≈50 g) |
The panel’s transparency is specified as 80 %.
The panel supports input by stylus or finger.
