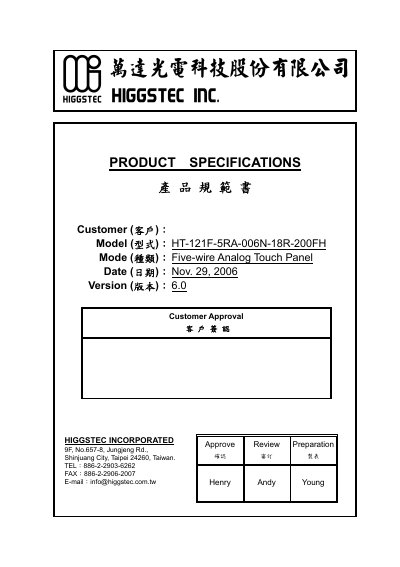

This document is a product specification for HT-121F-5RA-006N-18R-200FH five-wire analog touch panel, including dimensions, features, general specifications, environmental characteristics, optical characteristics, electrical characteristics, mechanical characteristics, reliability, durability, etc.
The HT-121F-5RA-006N-18R-200FH is a five‑wire analog resistive touch panel designed for integration into display systems. It supports stylus or finger input and is built to operate in a wide temperature and humidity range.
Key specifications cover panel size, viewable area, thickness, optical transparency, loop resistance, operating force, and endurance voltage. The document also details inspection methods, mounting guidelines, durability testing, and a two‑year limited warranty. This manual is written in Chinese.
HIGGSTEC provides a 2‑year limited warranty on all five‑wire analog products.
