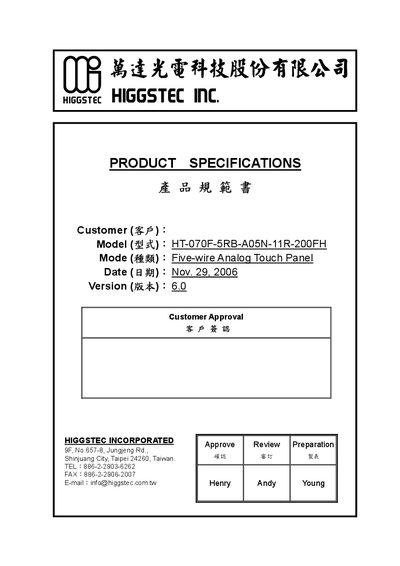

This document is the product specification book of five-wire analog touch panel with model HT-070F-5RB-A05N-11R-200FH
This guide details the HT-070F-5RB-A05N-11R-200FH five‑wire analog resistive touch panel, covering its dimensions, electrical characteristics, environmental limits, and mechanical properties. It is intended for engineers and integrators who need to select and install the panel in their devices.
Key specifications include a 158 mm × 94.6 mm active area, 1.4 mm thickness, operation from –10 °C to +70 °C, and a transparency of 80 %. The document also outlines inspection methods, reliability testing, and cautions for storage, cleaning, and handling to ensure long‑term performance. This manual is written in Chinese.
| Model | HT-070F-5RB-A05N-11R-200FH |
|---|---|
| Type | Five‑wire Analog Resistive |
| Input Mode | Stylus or Finger |
| Active Area | 158.00+0.20 mm × 94.60+0.20 mm |
| Frame Size | 170.10+0.30 mm × 106.30+0.30 mm |
| Thickness | 1.40+0.20 mm |
| Operating Temperature | -10 °C to +70 °C |
| Storage Temperature | -40 °C to +80 °C |
| Relative Humidity (RH) | 20 % to 90 % |
| Transparency | 80 % |
| Loop Resistance X | > 5000 Ω |
| Operating Force | 0.8 N (≈ 50 g) |
The panel can be operated with either a stylus or a finger.
The panel operates safely between –10 °C and +70 °C.
Use a neutral detergent or isopropyl alcohol on a clean soft cloth and avoid any chemical solvents.
