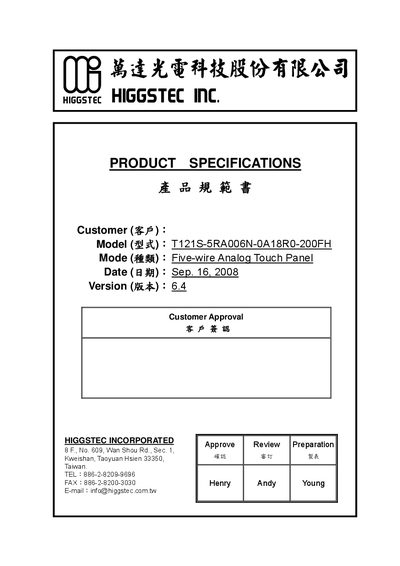

This document is the product specification of the five-wire analog touch panel T121S-5RA006N-0A18R0-200FH
The document provides the full specification for HIGGSTEC’s five‑wire analog resistive touch panel model T121S‑5RA006N‑0A18R0‑200FH. It covers the panel’s physical dimensions, environmental limits, optical performance, electrical characteristics and mechanical durability.
Key data include the panel size (271.27 × 205.74 mm), thickness (2.20 mm), transparency (80 %), operating force (50 g), and temperature range (‑10 °C to +70 °C). The manual also lists inspection methods, handling cautions, and reliability test procedures to ensure proper integration and long‑term performance. This manual is written in Chinese.
| Panel size (Bme Size) | 271.27 ± 0.30 mm × 205.74 ± 0.30 mm |
|---|---|
| Thickness | 2.20 ± 0.20 mm |
| Transparency | 80 % |
| Haze | 8 % |
| Operating force (stylus) | 0.8 mm = 50 g |
| Operating temperature range | -10 °C to +70 °C, 20 %–80 % RH |
The panel operates from –10 °C to +70 °C with relative humidity between 20 % and 80 %.
The panel has a transparency of 80 % as measured by a BYK‑Gardner instrument.
