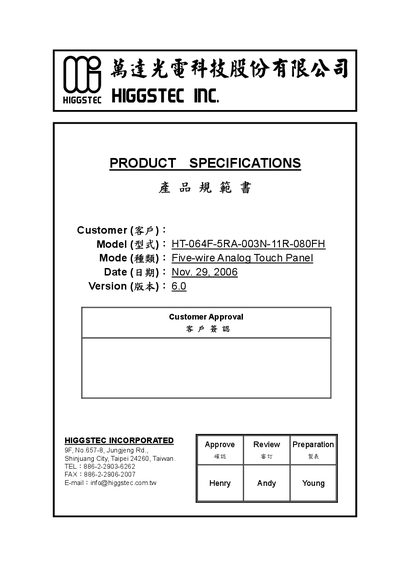

This document is a product specification for the HT-064F-5RA-003N-11R-080FH model, which is a five-wire analog touch panel. It describes the features, characteristics, and specifications of the product.
This manual describes the specifications, features, and handling procedures for the HIGGSTEC HT-064F-5RA-003N-11R-080FH five‑wire analog resistive touch panel. It covers dimensions, electrical and optical characteristics, environmental limits, mechanical strength, reliability testing, and inspection methods.
Key sections include a detailed list of dimensions and active area, environmental operating ranges, transparency and haze values, loop resistance and chattering time, as well as cautions for storage, cleaning, assembly, and operation to ensure long‑term performance. This manual is written in Chinese.
| Panel size | 150.00+0.30 x 115.50+0.30 mm |
|---|---|
| Active area | 133.60+0.20 x 101.40+0.20 mm |
| Thickness | 1.40+0.20 mm |
| Operating temperature (non‑condensing) | -10 °C to +70 °C |
| Storage temperature range | -40 °C to +80 °C |
| Transparency | 80 % ±2 % |
| Loop resistance X | > 5 kΩ |
| Loop resistance Y | > 5 kΩ |
| Chattering time | 15 ms |
| Maximum actuation force after durability test | 150 g |
The panel can operate from –10 °C up to +70 °C in non‑condensing conditions.
Store the panel within the specified temperature and humidity range, keep it out of direct sunlight, and use clean sacks or gloves to prevent fingerprints.
Maintain at least a 0.3 mm clearance between the panel and the display module.
The panel has a transparency of about 80 % with a tolerance of ±2 %.
