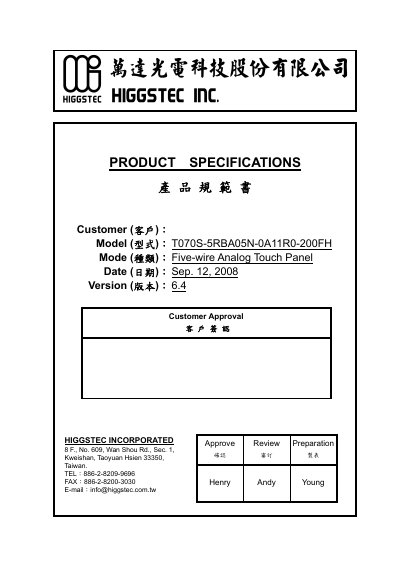

This document is a product specification for the T070S-5RBA05N-0A11R0-200FH model, a five-wire analog touch panel manufactured by Wanda Optoelectronic Technology Co., Ltd. The document provides detailed information about the features, characteristics, general specifications, environmental characteristics, optical characteristics, electrical characteristics, mechanical characteristics, reliability, durability, inspection methods, appearance inspection, mounting conditions, warranty, and appendices of the product.
This specification sheet details the dimensions, electrical and optical characteristics, and mechanical performance of the five‑wire analog resistive touch panel model T070S-5RBA05N-0A11R0-200FH. It includes data on frame size, view area, thickness, loop resistance, transparency, haze and operating temperature/humidity ranges.
The document also provides inspection methods, mounting recommendations, warranty terms and handling cautions to ensure reliable integration of the panel into devices. Reliability and durability test results are summarized, along with visual appearance criteria for quality control. This manual is written in Chinese.
| Frame Size | 170.10±0.30 × 106.30±0.30 mm |
|---|---|
| View Area | 158.00±0.20 × 94.60±0.20 mm |
| Active Area | 155.00±0.20 × 92.70±0.20 mm |
| Operating Temperature | -10 °C ~ +70 °C |
| Storage Temperature | -40 °C ~ +80 °C |
| Linearity X | ≤ 1.5 % |
| Chattering Time | ≤ 15 ms |
| Insulation Resistance | ≥ 20 MΩ / 25 V DC |
| Endurance Voltage | DC 50 V for 60 s |
| Warranty Period | 2 years limited |
The panel operates from –10 °C to +70 °C.
It is covered by a 2‑year limited warranty.
A clearance of at least 0.3 mm should be retained between the panel and the display module.
The actuation force must not exceed 150 g after reliability testing.
