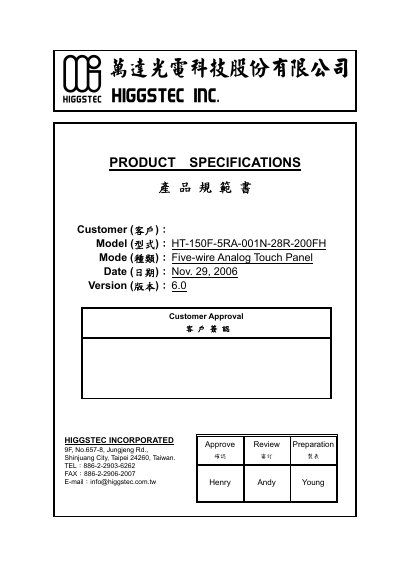

This is a product specification for a five-wire analog touch panel
This document provides the complete technical specifications for the HIGGSTEC HT-150F-5RA-001N-28R-200FH five‑wire analog resistive touch panel. It includes dimensions, environmental, optical, electrical, mechanical, reliability and durability data, as well as inspection methods and appearance criteria.
Additional sections cover mounting guidelines, handling precautions, cleaning instructions, and the 2‑year limited warranty. The information is intended for designers, integrators and service technicians who need detailed product data for integration and maintenance. This manual is written in Chinese.
| Frame Size | 332.90±0.30 mm × 248.90±0.30 mm |
|---|---|
| View Area | 311.10±0.20 mm × 235.10±0.20 mm |
| Active Area | 307.10±0.20 mm × 231.10±0.20 mm |
| Endurance Voltage | No damage at DC 50 V for 60 s |
| Warranty | 2‑year limited warranty |
