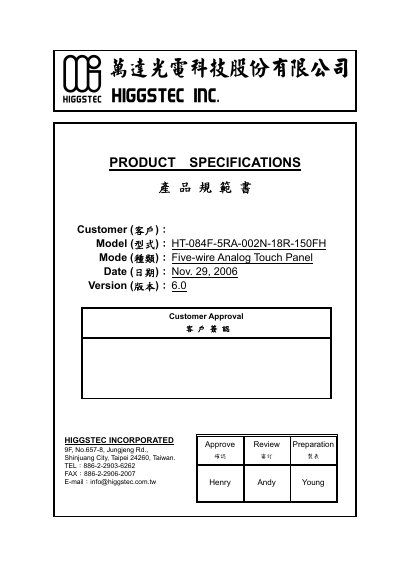

This document is the product specification for the HT-084F-5RA-002N-18R-150FH Five-wire Analog Touch Panel. It introduces the product features, characteristics, general specifications, environmental characteristics, optical characteristics, electrical characteristics, mechanical characteristics, reliability, durability, inspection methods, appearance inspection, mounting instructions, warranty, and appendices.
The HT-084F-5RA-002N-18R-150FH is a five‑wire analog resistive touch panel that can be operated with a stylus or finger. Its frame measures 196.09±0.30 × 149.86±0.30 mm, providing a view area of 174.80±0.20 × 132.20±0.20 mm and an active area of 171.40±0.20 × 128.80±0.20 mm. The panel thickness is 2.20±0.20 mm, with a transparency of ≥80% ± 2% and haze ≤10% ± 2%.
Key electrical specifications include loop resistance of 20~500 Ω for both X and Y axes, linearity ≤1.5% for each axis, insulation resistance ≥20 MΩ/25 V DC, and endurance of no damage at DC 50 V for 60 seconds. The panel operates from –10 °C to +70 °C, can be stored from –40 °C to +80 °C, and carries a 2‑year limited warranty. Mounting instructions emphasize keeping the gasket support outside the viewable area, ensuring bezel openings do not touch the viewable area, and avoiding metal contact or adhesives on the panel surface. This manual is written in Chinese.
| Frame Size | 196.09±0.30 × 149.86±0.30 mm |
|---|---|
| View Area | 174.80±0.20 × 132.20±0.20 mm |
| Active Area | 171.40±0.20 × 128.80±0.20 mm |
| Total Thickness | 2.20±0.20 mm |
| Transparency | ≥80% ± 2% |
| Loop Resistance (X/Y) | 20~500 Ω |
| Linearity (X/Y) | ≤1.5% |
| Operating Temperature | -10 °C ~ +70 °C |
| Storage Temperature | -40 °C ~ +80 °C |
| Insulation Resistance | ≥20 MΩ/25 V DC |
| Endurance | No damage at DC 50 V for 60 s |
| Static Load | 500 g on 10 cm² for 30 s |
The panel operates from –10 °C to +70 °C.
The total thickness is 2.20 ± 0.20 mm.
HIGGSTEC offers a 2‑year limited warranty on all five‑wire analog products.
