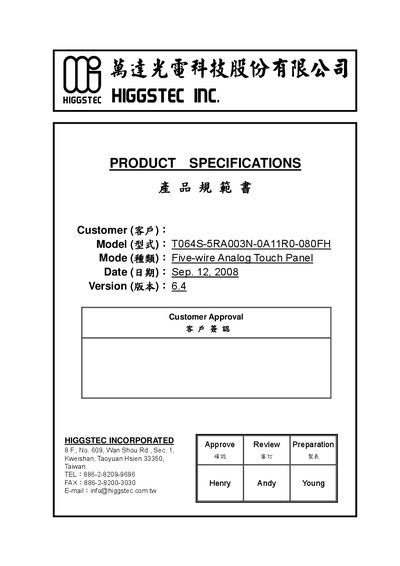

This document is the product specifications for T064S-5RA003N-0A11R0-080FH from Vanda Optoelectronics Technology Co., Ltd.
This document provides the complete specification for the HIGGSTEC T064S-5RA003N-0A11R0-080FH five‑wire analog resistive touch panel. It includes details on size, view area, optical properties, electrical characteristics, mechanical strength, environmental limits and inspection methods.
Key parameters include a panel size of 150.00 × 115.50 mm, 80% transparency, loop resistance over 5 kΩ, operating temperature from –40 °C to +70 °C, and a stylus operating force of 0.8 N (≈50 g). The sheet also outlines handling, cleaning and installation precautions to ensure reliable performance. This manual is written in Chinese.
| Type | Five-Wire Analog Resistive |
|---|---|
| Input Mode | Stylus or Finger |
| Panel Size | 150.00+0.30 x 115.50+0.30 mm |
| Thickness | 1.40+0.20 mm |
| Transparency | 80% |
| Resistance Variation (X/Y) | X 1.5 %, Y 2.0 % |
| Chattering Time | 15 ms |
| Maximum DC Voltage without Damage | 50 V for 60 s |
| Operating Force (Stylus) | 0.8 N (≈50 g) |
| Impact Test Height | 30 cm |
| Static Load | 500 g within 10 cm area |
The panel measures 150.00 + 0.30 mm by 115.50 + 0.30 mm.
The panel has a transparency of 80 %.
