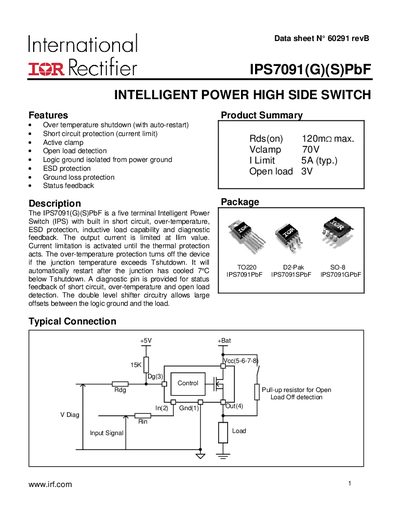

IPS7091(G)(S)PbF is a five terminal Intelligent Power Switch (IPS) with built in short circuit, over-temperature, ESD protection, inductive load capability and diagnostic feedback.
The IPS7091(G)(S)PbF is a five‑terminal intelligent power switch with built‑in short‑circuit, over‑temperature, ESD protection and diagnostic feedback. It supports up to 1.5 A continuous drain current and features an active clamp for load protection.
The datasheet provides absolute maximum ratings, thermal characteristics, recommended operating conditions, static and switching electrical parameters, as well as mechanical dimensions for SO‑8 and TO‑220 packages.
| On‑state resistance (Rds(on)) at 25 °C | 80 mΩ |
|---|
The typical on‑state resistance is 80 mΩ at a junction temperature of 25 °C.
