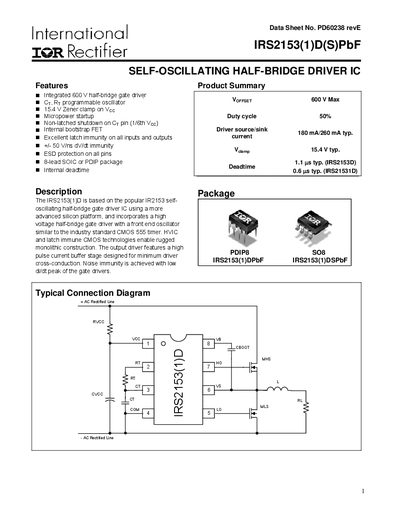

This data sheet provides detailed information on the IRS2153(1)D(S)PbF, a 600V half-bridge gate driver IC with integrated 600V half-bridge gate driver, CT, RT programmable oscillator, 15.4V Zener clamp on VCC, micropower startup, non-latched shutdown on CT pin (1/6th VCC), internal bootstrap FET, excellent latch immunity on all inputs and outputs, +/- 50V/ns dV/dt immunity, ESD protection on all pins, 8-lead SOIC or PDIP package, internal deadtime
The IRS2153(1)D is a self‑oscillating half‑bridge driver IC designed for high‑voltage applications. It integrates a 600 V half‑bridge gate driver, a programmable oscillator, a 15.4 V Zener clamp on VCC, micropower startup, non‑latched shutdown, internal bootstrap FET, +/- 50 V/µs dV/dt immunity and ESD protection on all pins. The device is offered in an 8‑lead SOIC or PDIP package with internal deadtime control.
Electrical specifications include a high‑side floating supply voltage rating up to 625 V, maximum power dissipation of 1.0 W (DIP) or 0.625 W (SOIC) at 25 °C, thermal resistance of 85 °C/W (DIP) or 128 °C/W (SOIC), and storage temperature range from –55 °C to 150 °C. Recommended operating conditions, component values and detailed timing characteristics are provided for optimal performance.
| Integrated half‑bridge voltage rating | 600 V |
|---|---|
| Zener clamp voltage on VCC | 15.4 V |
| ESD protection | All pins |
| Package options | 8‑lead SOIC or PDIP |
| Maximum high‑side supply voltage (VB) | 625 V |
| Maximum power dissipation (DIP) | 1.0 W |
The high‑side floating supply voltage (VB) is rated up to 625 V.
The device is offered in an 8‑lead SOIC or PDIP package.
The Zener clamp voltage on VCC is 15.4 V.
