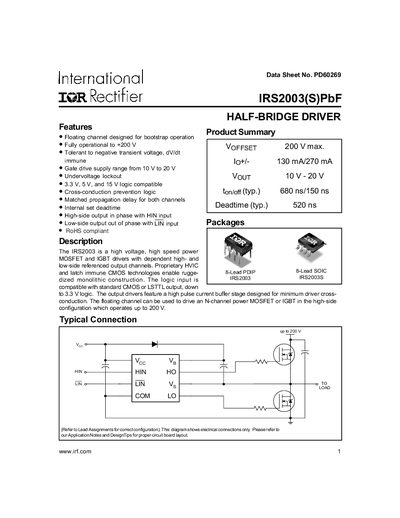

The IRS2003 is a high voltage, high speed power MOSFET and IGBT drivers with dependent high- and low-side referenced output channels. It is designed for bootstrap operation and can operate up to +200 V. It is tolerant to negative transient voltage, dV/dt immune. The gate drive supply range is from 10 V to 20 V. It has undervoltage lockout feature and is compatible with 3.3 V, 5 V, and 15 V logic. It also has cross-conduction prevention logic and matched propagation delay for both channels. The high-side output is in phase with HIN input, while the low-side output is out of phase with ��� input.
The IRS2003(S)PbF is a high‑voltage, high‑speed MOSFET/IGBT driver featuring a floating high‑side channel, internal dead‑time, and cross‑conduction protection. It operates from a 10 V‑20 V gate‑drive supply and is compatible with 3.3 V, 5 V, and 15 V logic families. The device is RoHS compliant and designed for industrial‑level applications.
Electrical specifications include absolute maximum ratings of 225 V on the high‑side floating supply, turn‑on propagation delay of 680 ns (typ), turn‑off delay of 150 ns (typ), and a typical dead‑time of 520 ns. The driver is offered in 8‑lead PDIP and 8‑lead SOIC packages, with tape‑and‑reel options for automated assembly.
| Gate‑drive supply range | 10 V to 20 V |
|---|---|
| High‑side floating supply voltage (max) | 225 V |
| Typical turn‑on propagation delay | 680 ns |
| Typical turn‑off propagation delay | 150 ns |
| Package power dissipation (PDIP 8‑lead) | 10 W |
| Package power dissipation (SOIC 8‑lead) | 0.625 W |
| Storage temperature range | -55 °C to 150 °C |
| Ambient operating temperature range | -40 °C to 125 °C |
| Logic input compatibility | 3.3 V, 5 V, 15 V |
The high‑side floating supply can withstand up to 225 V absolute maximum, with typical operation up to 200 V.
Yes, the datasheet lists the part as RoHS compliant.
