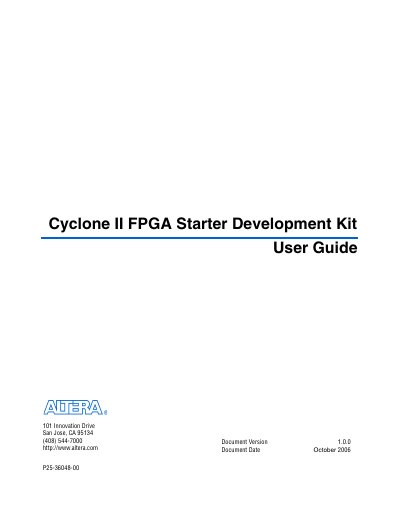

This manual introduces the functions and usage of Altera Cyclone II FPGA Starter Development Kit.
This guide introduces the Cyclone II FPGA Starter Development Kit, describing the hardware components, required software tools, and steps to power up and verify the board. It covers installing the Quartus II software, loading the development kit CD-ROM, and configuring the FPGA.
Subsequent chapters detail the control panel GUI, how to operate LEDs, 7‑segment displays, PS/2 keyboard, SDRAM/SRAM controller, flash memory programmer, and advanced examples such as an SD‑card music player and VGA display. Reference links for additional resources and technical support are also provided.
| FPGA model | Cyclone II 2C20 |
|---|---|
| Power supply | 7.5 V DC wall‑mount |
Refer to Chapter 2, "Powering Up the Development Board" for the required steps.
Install the Quartus II Software and the Altera Development Suite Tools from the provided CD‑ROM.
