MAX 7000 is a high-performance, EEPROM-based programmable logic devices (PLDs) based on second-generation MAX® architecture.

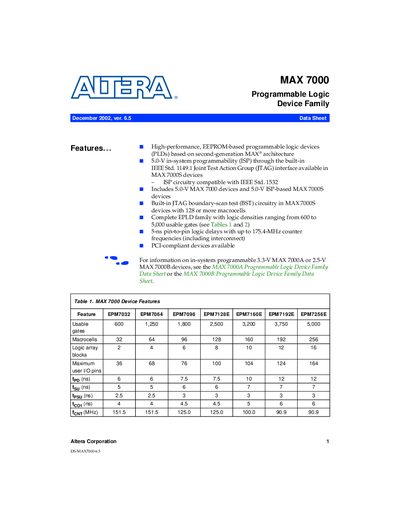

The document describes the Altera MAX 7000 family of high-density, high-performance Programmable Logic Devices (PLDs). These devices are based on second-generation MAX architecture and utilize CMOS EEPROM technology to implement logic functions. The family includes standard MAX 7000 devices with densities ranging from 600 to 5,000 usable gates, as well as enhanced MAX 7000E and in-system programmable (ISP) MAX 7000S variants.
| Usable gates range | 600 to 5,000 |
|---|---|
| Macrocells per device | 32 to 256 |
| Pin-to-pin logic delays | as fast as 5 ns |
| Programming endurance | up to 100 times |
The family provides logic densities ranging from 600 to 5,000 usable gates.
Yes, they can be programmed and erased up to 100 times for design iterations.
