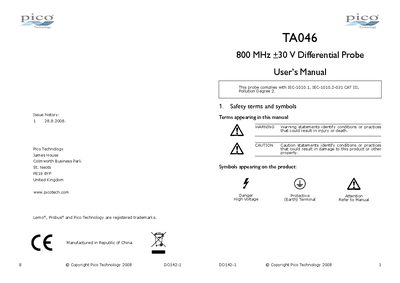

This is a product user manual, which mainly introduces the safety use of TA046 800MHz ±30V differential probe
This manual outlines safety precautions for the TA046 differential probe, including voltage limits, cover usage, and operating environment restrictions. It also describes the probe’s high‑bandwidth performance and typical applications such as timing analysis and ground‑bounce troubleshooting.
The document lists detailed technical specifications, power requirements, and accessories. Installation steps show how to connect the BNC output to an oscilloscope and power the probe with a regulated 15 V DC adapter. A parts list describes the included micro‑test accessories and twin‑pin connectors.
| Bandwidth | DC to 800 MHz (Twin Pin configuration) |
|---|---|
| Accuracy | +‑2% |
| Input impedance | 100 kΩ || 2 pF |
| Attenuation | 1/10 |
| Maximum differential input voltage | ‑15 V |
| Maximum common‑mode voltage | +30 V |
| Absolute maximum voltage | +40 V |
| Output swing (into 50 Ω load) | +1.5 V |
| Output offset (typical) | < +5 mV |
| Output impedance (typical) | 502 Ω |
| CMRR (typical) | 60 dB @ 60 Hz; 15 dB @ 500 MHz |
| BNC cable length | 1.2 m |
| Power requirements | 15 V DC / 100 mA regulated mains adaptor |
| Ambient operating temperature | -10 °C to +40 °C |
| Ambient storage temperature | -30 °C to +70 °C |
| Ambient operating humidity | 25 % to 85 % RH |
| Weight | 130 g |
| Dimensions (L×W×H) | 111 mm × 22 mm × 14 mm |
The absolute maximum input voltage is +40 V.
It requires a 15 V DC / 100 mA regulated mains adaptor.
The probe has a bandwidth of DC to 800 MHz (Twin Pin configuration).
No, the probe must not be operated with the covers removed.
