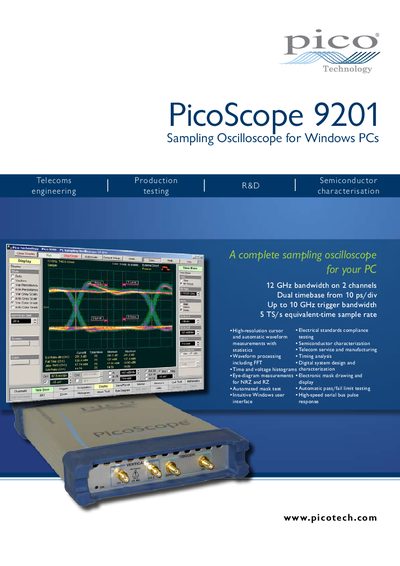

The PicoScope 9201 Sampling Oscilloscope is a complete sampling oscilloscope for your PC with 12 GHz bandwidth on 2 channels, Dual timebase from 10 ps/div Up to 10 GHz trigger bandwidth 5 TS/s equivalent-time sample rate. It is suitable for telecoms engineering, production testing, R&D and semiconductor characterisation.
The PicoScope 9201 provides a 12 GHz bandwidth on two channels with dual time‑base down to 10 ps/div, enabling capture of very fast signals. It includes a 1 GHz direct trigger and a 10 GHz high‑frequency trigger, plus a suite of mathematical and statistical tools such as FFT, histograms, and eye‑diagram analysis.
The instrument comes with a complete kit (oscilloscope unit, software CD, SMA adapters, USB and LAN cables, power supply and carry case) and operates from +5 °C to +40 °C on a 6 VDC ±5% power supply. Its 16‑bit ADC, 5 TS/s equivalent‑time sample rate, and extensive measurement options make it suitable for semiconductor, telecom, and high‑speed digital design work.
| Bandwidth (Vertical) | 12 GHz |
|---|---|
| Number of channels | 2 (simultaneous acquisition) |
| Timebase range | 10 ps/div to 2 ms/div |
| Direct trigger bandwidth | 1 GHz |
| High‑frequency trigger bandwidth | 10 GHz |
| ADC resolution | 16 bits |
| Equivalent‑time sample rate | 5 TS/s |
| Operating temperature range | +5 °C to +40 °C |
| Power supply | 6 VDC ±5%, 2.5 A max |
The PicoScope 9201 provides a 12 GHz vertical bandwidth on its two channels.
It has two simultaneous acquisition channels.
The instrument includes a 1 GHz direct trigger and a high‑frequency trigger up to 10 GHz.
Up to four simultaneous math waveforms can be defined, using functions such as Add, Subtract, Multiply, Divide, Invert, Absolute, Exponent, Logarithm, Differentiate, Integrate, and FFT.
