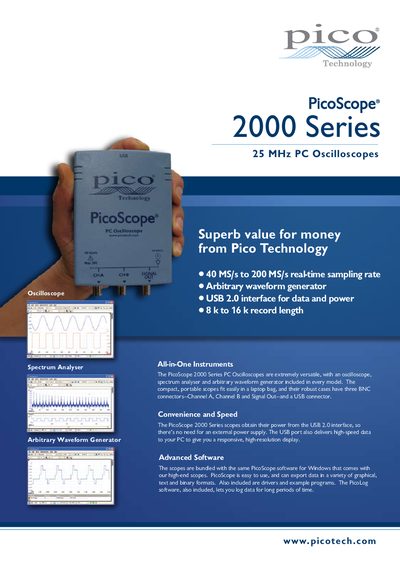

The PicoScope 2000 Series PC Oscilloscopes is an extremely versatile oscilloscope with a frequency range of 25 MHz, a sampling rate of 40 MS/s to 200 MS/s, and an integrated oscilloscope, spectrum analyser and arbitrary waveform generator. It supports USB 2.0 interface for power and data transmission, and has a record length of 8 k to 16 k.
The PicoScope 2000 Series PC oscilloscopes combine an oscilloscope, spectrum analyser and arbitrary waveform generator in a compact, USB‑powered instrument. Each model offers two BNC inputs, a signal‑out connector and a USB 2.0 interface for data and power, eliminating the need for an external power supply.
The scopes are supplied with PicoScope Windows software and PicoLog for long‑term data logging. Detailed specifications include bandwidth options up to 25 MHz, sampling rates up to 200 MS/s, and a variety of trigger modes, making them versatile tools for laboratory and field use.
| Bandwidth | 5 MHz, 10 MHz, 25 MHz |
|---|---|
| Channels | 2 |
| Resolution | 8 bits |
| Enhanced resolution | 12 bits |
| Maximum real‑time sampling rate | 200 MS/s |
| Record length (single‑channel) | 16 000 samples |
| Timebase accuracy | 100 ppm with 3 ps jitter |
| Trigger modes | Rising edge, falling edge, threshold advanced |
| Arbitrary waveform generator buffer size | 4 k words |
| Arbitrary waveform output range | ≈125 mV to 42 V |
| PC interface | USB 2.0 |
| Dimensions | 100 × 135 × 45 mm |
They obtain power from the USB 2.0 interface, so no external power supply is required.
The series offers bandwidths of 5 MHz, 10 MHz, and 25 MHz.
Each scope provides two input channels.
