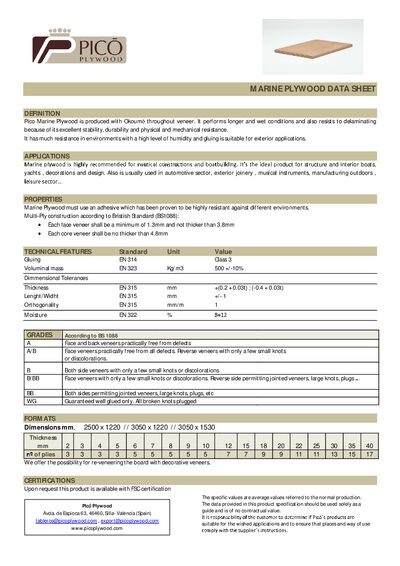

Technical specifications, dimensions, grades, and certifications for Pico Marine Plywood.
Pico Marine Plywood is a high‑performance marine plywood produced with Okoum veneer. It offers excellent stability, durability, and resistance to delamination, making it suitable for high‑humidity environments, exterior applications, boat construction, yachts, automotive interiors, musical instruments, and outdoor manufacturing.
The data sheet lists technical features such as EN 314 Class 3 gluing, EN 323 voluminal mass of 500 ± 10 % kg/m³, dimensional tolerances per EN 315, moisture resistance per EN 322, and a range of thicknesses and panel dimensions. Certifications include FSC on request and grading according to BS 1088 standards.
| Gluing | EN 314 Class 3 |
|---|---|
| Voluminal mass | 500 ± 10 % kg/m³ |
| Thickness tolerance | +(0.2 + 0.03t) / -(0.4 + 0.03t) mm |
| Length/Width tolerance | ± 1 mm |
| Orthogonality | 1 mm/m |
| Moisture resistance | EN 322 % |
The plywood should be glued according to EN 314 Class 3.
Available thicknesses range from 2 mm up to 40 mm, in increments listed in the data sheet.
FSC certification is available upon request.
Standard dimensions are 2500 × 1220 mm, 3050 × 1220 mm, and 3050 × 1530 mm.
