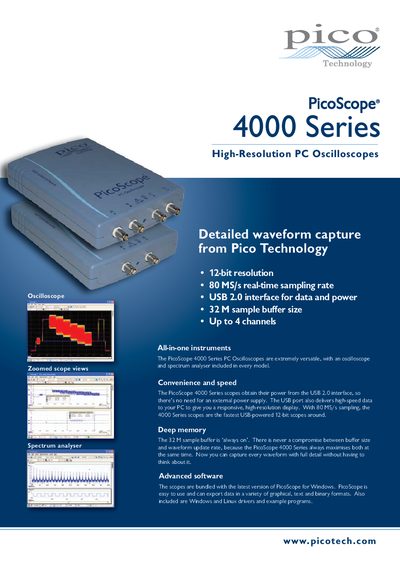

The PicoScope 4000 Series PC Oscilloscopes are extremely versatile, with an oscilloscope and spectrum analyser included in every model. These scopes support 12-bit resolution, 80MS/s real-time sampling rate, USB 2.0 interface for data and power, 32M sample buffer size, and up to 4 channels.
The 4000 Series combines a high‑resolution oscilloscope and a spectrum analyser in a single USB‑powered instrument. It offers 12‑bit ADC resolution, up to 80 MS/s real‑time sampling, a 32 M sample buffer, and up to four input channels with BNC connectors.
Key specifications include a 20 MHz bandwidth (10 MHz on the 50 mV range), 10 mV/div to 20 V/div vertical range, USB 2.0 power and data, dimensions of 200 mm × 140 mm × 35 mm, and a weight under 500 g. The device operates from +0 °C to +45 °C and complies with FCC, CE, and RoHS standards.
| ADC resolution | 12 bits (up to 16 bits with resolution enhancement) |
|---|---|
| Maximum sampling rate | 80 MS/s (1‑2 channels), 20 MS/s (3‑4 channels) |
| Buffer size | 32 M samples shared between active channels |
| Input bandwidth | 20 MHz (10 MHz on 50 mV range) |
| Input connectors | 4 × BNC (plus 2 × BNC optional) |
| Dimensions | 200 mm × 140 mm × 35 mm |
| Weight | < 500 g |
| Power source | USB 2.0, 5 V @ 500 mA max |
| Operating temperature | +0 °C to +45 °C |
The scopes can sample at up to 80 MS/s when using one or two channels, and 20 MS/s with three or four channels.
The instrument supports up to four input channels.
Each scope has a 32 M sample buffer that is shared between active channels.
It receives power from the USB 2.0 interface, drawing up to 500 mA at 5 V.
