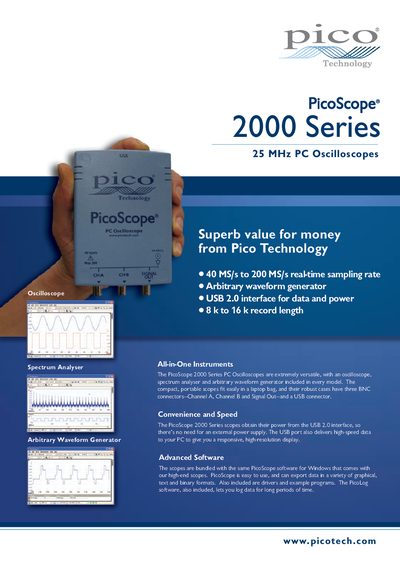

PicoScope 2000 Series PC Oscilloscopes are an extremely versatile range of oscilloscopes from Pico Technology. They feature an oscilloscope, spectrum analyser and arbitrary waveform generator in every model.
The PicoScope 2000 Series PC oscilloscopes combine an oscilloscope, spectrum analyser and arbitrary waveform generator in a compact, USB‑powered instrument. Each unit provides two BNC input channels (Channel A, Channel B) and a Signal Out connector, and draws power directly from the USB 2.0 interface, eliminating the need for an external supply.
All models ship with the PicoScope Windows software and PicoLog data‑logging software, allowing high‑resolution display, data export in multiple formats, and long‑term logging. Detailed specifications such as bandwidth (5 MHz‑25 MHz), resolution (8‑bit, enhanced 12‑bit), record length (up to 16 k samples) and USB 2.0 connectivity are listed in the specifications section.
| Bandwidth | 25 MHz |
|---|---|
| Channels | 2 |
| Resolution | 8 bits |
| Enhanced resolution | 12 bits |
| Record length (max) | 16,000 samples |
| USB interface | USB 2.0 |
| Power source | USB powered |
| Dimensions | 140 × 190 × 45 mm |
| Weight | 210 g |
It uses a USB 2.0 interface for both power and data transfer.
Models are offered with 5 MHz, 10 MHz, and 25 MHz bandwidth.
