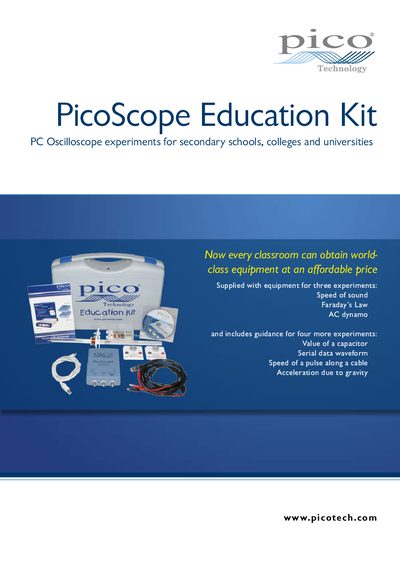

The PicoScope Education Kit provides affordable PC‑oscilloscope equipment for secondary schools, colleges and universities. It includes hardware for three core experiments – Speed of sound, Faraday’s Law and an AC dynamo – and guidance for four additional experiments such as measuring a capacitor value and determining acceleration due to gravity.
The kit contains a PicoScope 2205 sampling oscilloscope, experiment apparatus, cables, a USB connection and software. Technical specifications cover a 25 MHz bandwidth, 2‑channel BNC inputs, 200 MS/s sampling rate, 8‑bit ADC (up to 12 bits with enhancement), and a range of software features including X/Y rulers, automatic measurements, a spectrum analyser and a built‑in signal generator.
| Number of channels | 2 |
|---|---|
| Bandwidth | 25 MHz |
| Sensitivity | 10 mV/div to 4 V/div |
| Accuracy | 3 % |
| Nominal input impedance | 1 MΩ || 20 pF |
| Overload protection | +100 V on single input |
| Sampling rate | 200 MS/s (4 GS/s with equivalent‑time sampling) |
| ADC resolution | 8 bits (up to 12 bits with resolution‑enhance mode) |
| Buffer size | 8000 samples block mode, 2 M samples streaming mode |
The software includes X‑and‑Y rulers, automatic measurements, digital colour and analogue intensity persistence display modes, a spectrum analyser, and a built‑in signal generator.
