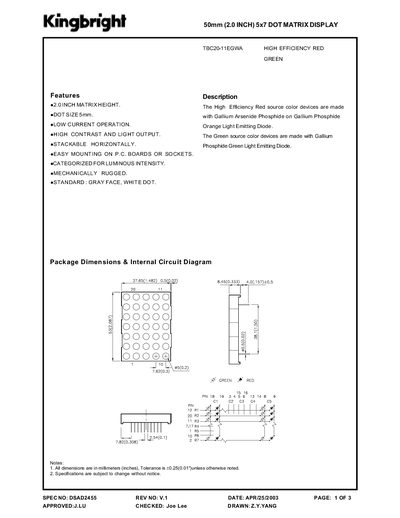

The Kingbright TBC20-11EGWA is a 50 mm (2.0 inch) 5×7 dot matrix display available in high‑efficiency red and green colors. The datasheet provides detailed electrical, optical, and mechanical characteristics, including peak wavelength, forward voltage, and luminous intensity.
Key sections include a selection guide, electrical/optical characteristics, absolute maximum ratings, and forward voltage/temperature derating curves. Package dimensions, internal circuit diagram, and mounting information are also provided.
| Capacitance (Red) | 18 pF |
|---|---|
| Forward Voltage (Red) | 2.2 V |
| Power Dissipation | 105 mW |
| DC Forward Current (Red) | 30 mA |
| Peak Forward Current (Red) | 160 mA |
| Operating Temperature Range | -40 °C to +85 °C |
The forward voltage for the High Efficiency Red LED is 2.2 V at a test current of 20 mA.
The device can dissipate up to 105 mW.
The display operates from –40 °C up to +85 °C.
