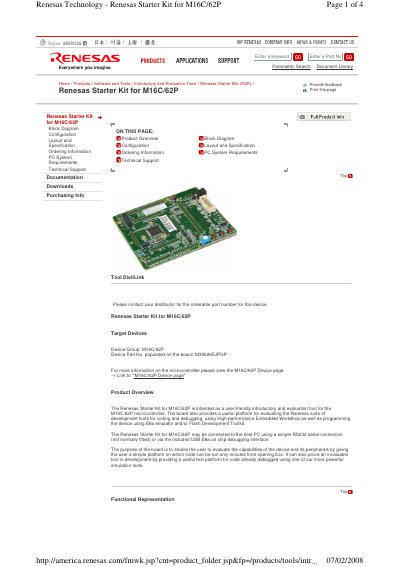

The Renesas Starter Kit for M16C/62P is intended as a user-friendly introductory and evaluation tool for the M16C/62P microcontroller. The board also provides a useful platform for evaluating the Renesas suite of development tools for coding and debugging, using High-performance Embedded Workshop as well as programming the device using E8a emulator and/or Flash Development Toolkit. The Renesas Starter Kit for M16C/62P may be connected to the host PC using a simple RS232 serial connection (not normally fitted) or via the included USB E8a on chip debugging interface.
The Renesas Starter Kit for M16C/62P is an introductory and evaluation platform for the M16C/62P microcontroller. It offers a simple USB‑E8a on‑chip debugging interface or optional RS232 connection, a detachable LCD display, and a set of software tools such as High‑performance Embedded Workshop, an E8a emulator, and a Flash Development Toolkit.
The kit includes a CPU board, detachable LCD module, AD adjustment shaft, E8a emulator, connection cables, a Quick Start Guide, and a CD‑ROM with documentation and software. Required PC specifications are an IBM PC/AT‑compatible system with USB, Intel Pentium III 600 MHz or higher, 128 MB RAM, and Windows 2000/XP.
| Microcontroller | M30626FJPGP |
|---|---|
| Input Clock Main | 6 MHz |
| Input Clock Sub | 32.768 kHz |
| LED Power indicator | green x 1 |
| DC Power Jack | 5 V Input |
| RS232 Serial Connector | 9‑pin DSUB |
| LCD Display Connector | 14‑pin socket |
The kit uses the M30626FJPGP microcontroller.
It can be connected via a simple RS232 serial connection (not normally fitted) or through the included USB E8a on‑chip debugging interface.
The kit contains a CPU board, detachable LCD display module, detachable AD adjustment shaft, E8a emulator, connection cables, a Quick Start Guide, and a CD‑ROM with documents and software.
