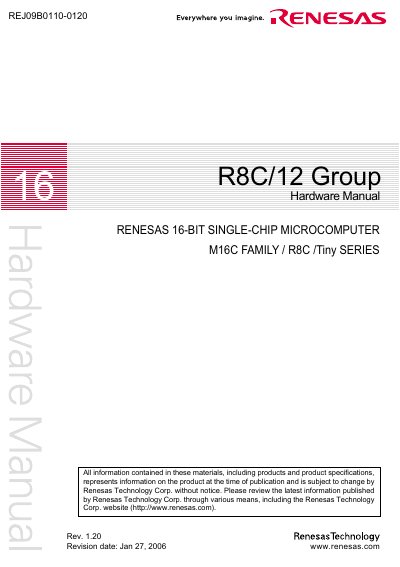

This is a hardware manual for RENESAS 16-BIT SINGLE-CHIP MICROCOMPUTER M16C FAMILY / R8C /Tiny SERIES R8C/12 Group 16
This hardware manual covers the R8C/12 Group of Renesas 16‑bit single‑chip microcomputers. It includes a complete description of the CPU core, register set, pin assignments, memory organization, and the operation of built‑in peripherals such as timers, serial interfaces, and A/D converters.
Safety notices, usage notes, and detailed electrical characteristics are also provided, along with example circuits and debugging information to help designers integrate the device into their applications.
| CPU architecture | 16‑bit |
|---|---|
| Family | M16C |
| Series | R8C/Tiny |
It provides detailed information on registers, pin assignments, memory maps, peripheral specifications, electrical characteristics, and timing charts for the R8C/12 microcontroller.
