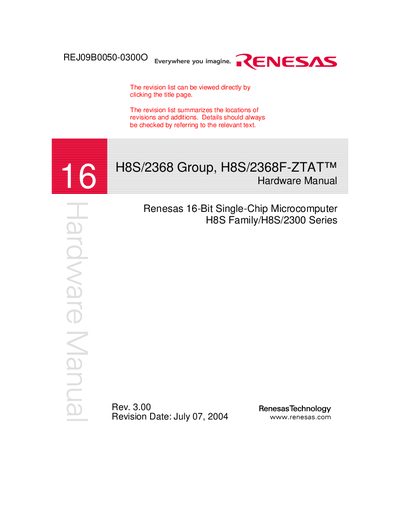

This document is a hardware manual for the Renesas 16-Bit Single-Chip Microcomputer H8S Family/H8S/2300 Series. It describes the features and characteristics of the products.
This hardware manual is written for designers who integrate the H8S/2368 Group microcontrollers into their applications. It explains the CPU core, system‑control functions, on‑chip peripheral modules, and the electrical characteristics needed for reliable circuit design.
The document includes a description of functional modules, pin arrangements, register lists, operating modes, and revision history, helping users understand how to configure and program the device safely and effectively.
| Device type | 16‑Bit Single‑Chip Microcomputer |
|---|---|
| CPU core | H8S/2600 with 32‑bit internal configuration |
| General registers | Sixteen 16‑bit registers |
| Address space | 16‑Mbyte linear address space |
| Flash memory version | Single‑power F‑ZTAT™ ROM |
It can address up to 16 Mbyte of linear memory.
