This product is a white SMD lamp with high efficiency and energy saving. It is suitable for automotive lighting, advertising lighting, and public lighting.

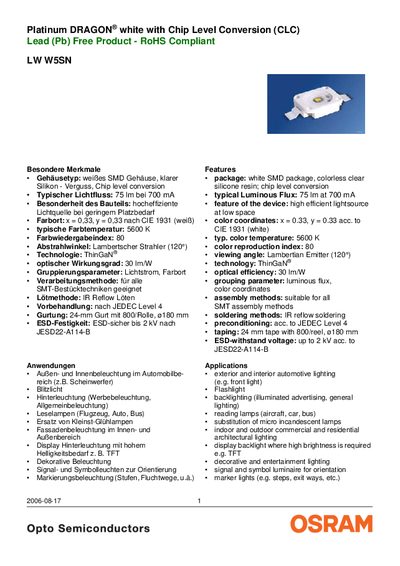

The LW W5SN is a white SMD LED with chip‑level conversion and a thin‑GaN® technology. It delivers a typical luminous flux of 75 lm at 700 mA, a color temperature of 5600 K, and a wide 120° viewing angle. The device is RoHS‑compliant and designed for both automotive and general lighting applications.
The document provides maximum ratings, ordering information, brightness‑group definitions, and safety notes. It also lists typical electrical parameters such as forward voltage, current limits, and ESD withstand capability, as well as environmental limits for operating and storage temperatures. This manual is written in German.
| Typical Luminous Flux | 75 lm at 700 mA |
|---|---|
| Color Temperature | 5600 K |
| Color Coordinates (CIE 1931) | x = 0.33, y = 0.33 |
| Optical Efficiency | 30 lm/W |
| Forward Voltage (typ.) | 3.6 V |
| Surge Current | 2500 mA (≤10 µs) |
| Junction Temperature (max, short term) | >150 °C |
| Operating Temperature Range | -40 °C to +125 °C |
| ESD Withstand Voltage | 2 kV |
The LW W5SN delivers a typical luminous flux of 75 lm when driven at 700 mA.
The typical forward voltage is 3.6 V at the rated current.
It can operate from –40 °C up to +125 °C.
