This product is TOPLED® Enhanced optical Power LED (HOP2000), with white P-LCC-2 package, light output power of 2.0W, and light color of amber and yellow. The luminous efficacy is 24 lm/W.

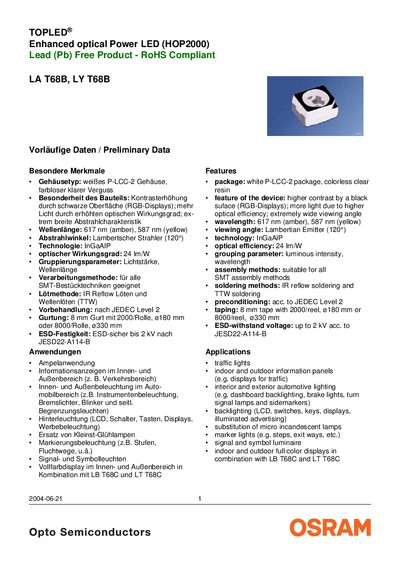

The document provides detailed specifications for the OSRAM LA T68B (amber) and LY T68B (yellow) LEDs. It includes optical performance, electrical ratings, mechanical dimensions, and recommended assembly methods.
Key sections cover ordering information, maximum ratings, characteristic curves, wavelength groups, and safety notes. The sheet also lists typical applications such as traffic lights, automotive interior/exterior lighting, backlighting for displays, and marker lights.
| Wavelength (amber) | 617 nm |
|---|---|
| Viewing angle | 120° (Lambertian) |
| Optical efficiency | 24 lm/W |
| Operating temperature range | -40 °C to +100 °C |
| Junction temperature max | +125 °C |
| ESD withstand voltage | 2 kV |
Both IR reflow soldering and TTW (thermal tape wave) soldering are suitable.
The devices can withstand up to 2 kV according to JESD22‑A114‑B.
The optical efficiency is specified as 24 lm/W.
