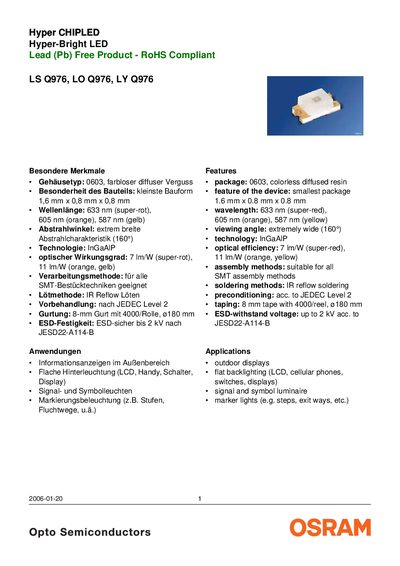

This document describes the features and characteristics of LS Q976, LO Q976, LY Q976 Hyper CHIPLED Hyper-Bright LED. The product features small size, multiple colors, wide wavelength range, and wide viewing angle, making it suitable for outdoor displays, flat panel backlighting, signal lights, and marking illumination.
The LS Q976 family (including LO Q976 and LY Q976) is a hyper‑bright, lead‑free 0603 chip LED offered by OSRAM Opto Semiconductors. It features a colorless diffused resin package with an extremely wide 160° viewing angle and high optical efficiency (7 Im/W for super‑red, 11 Im/W for orange and yellow). The devices are designed for SMT assembly and IR reflow soldering, and meet RoHS requirements.
Technical data include three wavelength options (633 nm super‑red, 605 nm orange, 587 nm yellow), a maximum forward current of 25 mA, forward voltage around 2.0 V, and an ESD withstand voltage up to 2 kV. The LEDs operate from –30 °C to +85 °C, can be stored down to –40 °C, and are supplied on 8‑mm tape with 4000 parts per reel. This manual is written in German.
| Package type | 0603, colorless diffused resin |
|---|---|
| Dimensions | 1.6 mm × 0.8 mm × 0.8 mm |
| Optical efficiency | 7 Im/W (red), 11 Im/W (orange, yellow) |
| Operating temperature range | -30 °C … +85 °C |
| Maximum junction temperature | +95 °C |
| ESD withstand voltage | 2 kV (JESD22‑A114‑B) |
| Tape width | 8 mm, 4000 parts per reel |
| RoHS compliance | Lead‑free, RoHS compliant |
