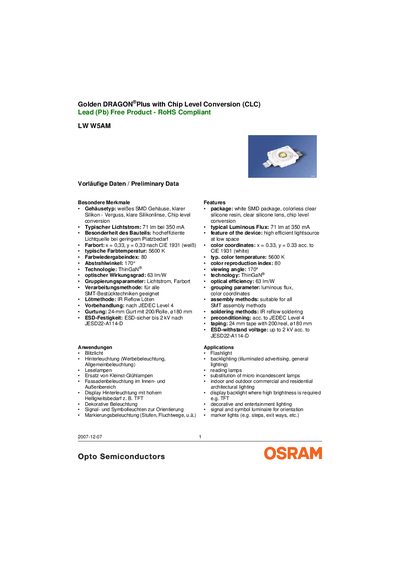

LW W5AM Golden DRAGON®Plus is a high efficiency white SMD light source with Chip Level Conversion (CLC) technology, with 63 lm/W optical efficiency.
The LW W5AM is a white SMD LED with a clear silicone resin package and chip‑level conversion. It delivers a typical luminous flux of 71 lm at 350 mA, a color temperature of 5600 K, and a viewing angle of 170°. The device uses ThinGaN® technology and achieves an optical efficiency of 63 lm/W.
The datasheet provides ordering codes, brightness‑group definitions, maximum ratings (operating temperature –40 °C to +110 °C, junction temperature 125 °C, forward current up to 1000 mA, power consumption 4 W), and compliance information (lead‑free, RoHS). It also includes a patent list, packing instructions, and legal notices. This manual is written in German.
| Typical Luminous Flux | 71 lm at 350 mA |
|---|---|
| Color Coordinates (x, y) | x = 0.33, y = 0.33 |
| Color Rendering Index | 80 |
| Technology | ThinGaN® |
| Optical Efficiency | 63 lm/W |
| Forward Current (max) | 1000 mA |
| Reverse Current (max) | 1 A |
The typical luminous flux is 71 lm at a drive current of 350 mA.
Yes, the device is lead‑free and complies with RoHS directives.
