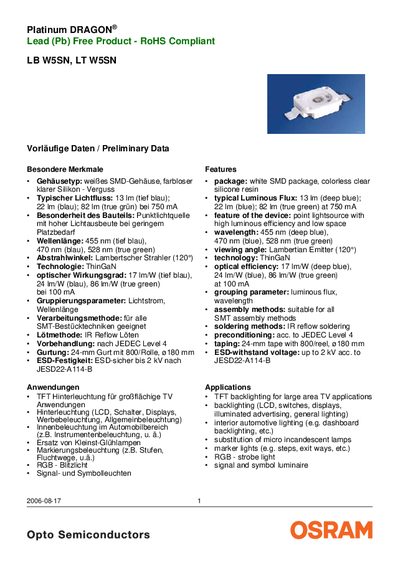

The document describes the features and characteristics of the LB W5SN, LT W5SN Platinum DRAGON® Lead (Pb) Free product, including its typical luminous flux, wavelength, emission angle, technological features, and applications.
The document provides preliminary data for OSRAM's LB W5SN and LT W5SN surface‑mount LEDs. It lists key optical characteristics such as luminous flux, wavelength, viewing angle and optical efficiency, as well as electrical parameters like forward voltage, reverse voltage and power consumption. The data are presented for typical operating conditions (e.g., 700 mA forward current) and include ordering codes, brightness groups and wavelength groups.
Additional sections cover maximum ratings, temperature ranges, ESD withstand voltage, and packaging notes. The sheet also contains revision history, safety notices for life‑support applications, and contact information for OSRAM Opto Semiconductors. This manual is written in German.
| Wavelength (deep blue) | 455 nm |
|---|---|
| Viewing angle | 120° (Lambertian) |
| ESD withstand voltage | 2 kV (JESD22‑A114‑B) |
Yes, it is a lead‑free product and RoHS compliant.
