T67F series TOPLED® enhanced thin film LED adopts white P-LCC-2 package, colorless transparent resin, is the ideal choice for super red, red, amber, orange, yellow LED, can be widely used in signal, indicator light, marking lighting, automobile tail lamp, automobile interior lighting, LCD backlight, advertising lamp, general lighting and other fields.

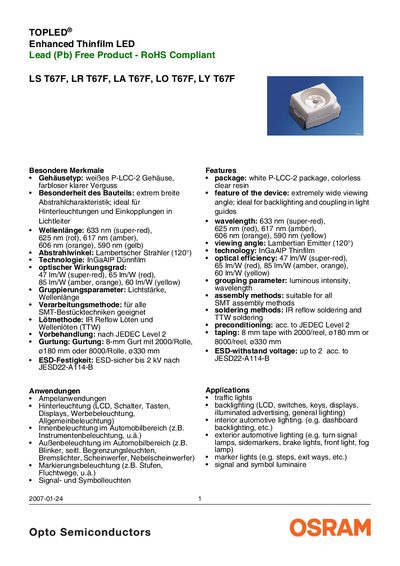

The LS T67F series includes five LED variants (super‑red, red, amber, orange, yellow) with a wide viewing angle and high optical efficiency. The devices are supplied in a white P‑LCC‑2 package with clear resin and are RoHS‑compliant.
Typical applications cover traffic‑light modules, backlighting for LCDs, switches and displays, as well as interior and exterior automotive lighting, marking and signal lamps. The LEDs are suitable for all standard SMT assembly processes and can be soldered by IR reflow or wave soldering (TTW). This manual is written in German.
| Viewing angle | 120° (Lambertian) |
|---|---|
| Operating temperature range | -40 °C … +100 °C |
| Storage temperature range | -40 °C … +100 °C |
| Maximum junction temperature | +125 °C |
The series is offered in super‑red, red, amber, orange and yellow variants.
Both IR reflow soldering and wave soldering (TTW) are suitable.
The typical forward voltage for the red version is 2.05 V at 20 mA.
