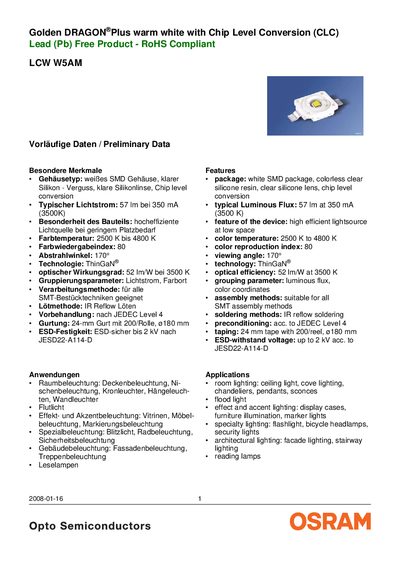

LCW W5AM Golden DRAGON®Plus warm white with Chip Level Conversion (CLC) Lead (Pb) Free Product - RoHS Compliant Preliminary Data. Features: high efficient lightsource at low space.
The LCW W5AM is a white SMD LED with a clear silicone lens and chip‑level conversion. It provides high luminous flux (57 lm at 350 mA) across a wide color‑temperature range (2500 K‑4800 K) and a wide viewing angle of 170°. The device uses ThinGaN® technology and achieves an optical efficiency of 52 lm/W at 3500 K.
The component is suitable for many lighting applications, including ceiling, cove, chandelier, flood, accent, specialty, architectural and reading lamps. It is RoHS‑compliant, ESD‑protected up to 2 kV, and can be assembled with standard SMT processes using IR reflow soldering. This manual is written in German.
| Typical luminous flux | 57 lm at 350 mA |
|---|---|
| Color temperature range | 2500 K – 4800 K |
| Color rendering index (CRI) | 80 |
| Viewing angle | 170° |
| Technology | ThinGaN® |
| Optical efficiency | 52 lm/W at 3500 K |
| Forward voltage (typical) | 3.2 V |
| Maximum forward current | 1000 mA |
| ESD withstand voltage | 2 kV |
| Package type | white SMD package, clear silicone lens |
It delivers about 57 lm at a drive current of 350 mA.
The typical forward voltage is 3.2 V.
The LED achieves an optical efficiency of 52 lm/W at 3500 K.
