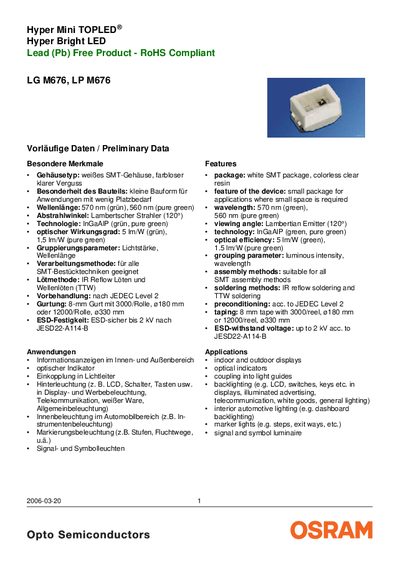

The document describes the features and characteristics of LG M676, LP M676 Hyper Mini TOPLED® Hyper Bright LED products, including their small size, white SMT package, wavelength of 570nm (green) and 560nm (pure green), viewing angle of Lambertian Emitter (120°), technology of InGaAlP (green, pure green), optical efficiency of 5 lm/W (green) and 1.5 lm/W (pure green), etc.
The LG M676 and LP M676 are small‑package green LEDs designed for applications with limited space, such as indoor/outdoor displays, backlighting, automotive instrument panels, and marker lights. They feature a white SMT package with clear resin and are RoHS‑compliant.
Key specifications include a peak wavelength of 570 nm (green) or 560 nm (pure green), a 120° Lambertian viewing angle, optical efficiency up to 5 Im/W, forward current up to 30 mA, and operation from –40 °C to +100 °C. The devices are suitable for standard SMT assembly and IR reflow soldering.
| Operating temperature range | -40 °C to +100 °C |
|---|---|
| Storage temperature range | -40 °C to +100 °C |
| Junction temperature (max) | +125 °C |
| Forward current (typical) | 30 mA |
| Optical efficiency (green) | 5 Im/W |
The typical forward current is 30 mA at 25 °C.
It can operate from –40 °C up to +100 °C.
