The Kingbright 58mm (2.3 inch) 8x8 dot matrix display provides high‑contrast, low‑current LED operation in a compact, stackable package. It supports multiple colors (red, green, yellow, super‑bright red) and both column‑anode and column‑cathode configurations.

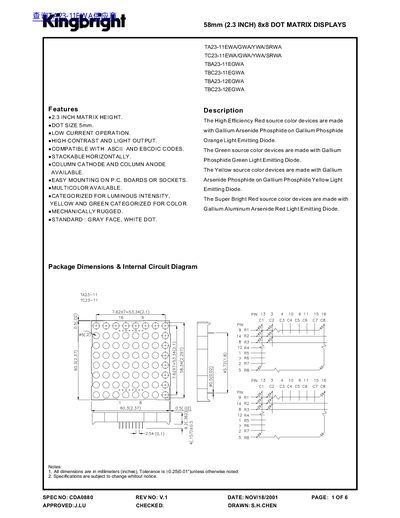

The datasheet includes package dimensions, internal circuit diagrams, selection guides, optical/electrical characteristics, absolute maximum ratings and forward‑voltage/luminous‑intensity curves for each color variant.
| Matrix height | 2.3 INCH |
|---|---|
| Dot size | 5 mm |
| Power dissipation | 105 mW (Red/Green/Yellow), 100 mW (Super Bright Red) |
| DC forward current | 30 mA (Red/Yellow), 25 mA (Green), 30 mA (Super Bright Red) |
| Reverse voltage | 5 V |
| Operating temperature | -40 °C to +85 °C |
