The TL-WN322G 54M Wireless USB Adapter is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. It supports the 2.4GHz frequency band and the 802.11b/g standard, with the ability to create derivatives such as translation, transformation, or adaptation. The adapter may cause interference in wireless communications, and users are encouraged to try adjusting the antenna position or increasing equipment separation to address interference issues.

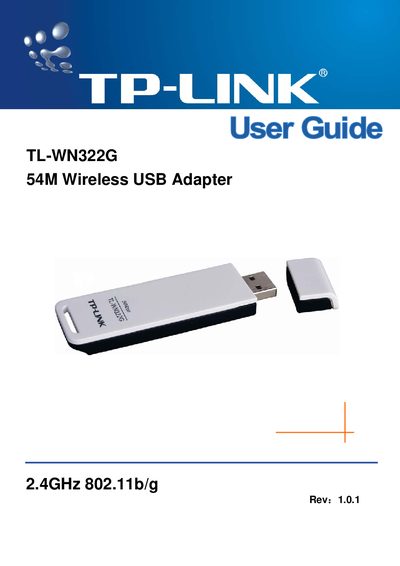

This manual introduces the TL-WN322G 54M Wireless USB Adapter, a USB 2.0 pen‑size device supporting IEEE 802.11b/g 2.4 GHz operation with data rates up to 54 Mbps. It describes the main features, LED status indicators, system requirements, and security options such as WPA, WPA2, and WEP encryption.
The guide includes step‑by‑step installation for various Windows versions, software configuration, example setups, and detailed specifications. Safety notices, FCC/CE compliance, and troubleshooting tips are also provided.
| Interface | A‑type USB 2.0 Connector |
|---|---|
| Standards | IEEE 802.11b; IEEE 802.11g |
| Operating System | Windows 98, ME, 2000, XP, 2003, 64‑bit XP, Vista |
| Frequency | 2.4 ~ 2.4835 GHz |
| Indoor Range | Up to 100 m |
| Outdoor Range | Up to 300 m |
| Transmit Power | Typical 13 dBm, Max 16 dBm |
| Data Security | WPA; 64/128/256‑bit WEP; TKIP/AES; IEEE 802.1X |
| Working Temperature | 0 °C ~ 40 °C |
| Storage Temperature | -40 °C ~ 70 °C |
| Humidity | 10 % ~ 90 % RH, non‑condensing |
The adapter works with Windows 98, ME, 2000, XP, 2003, 64‑bit XP, and Vista.
The device can reach up to 100 m indoors and up to 300 m outdoors, depending on the environment.
