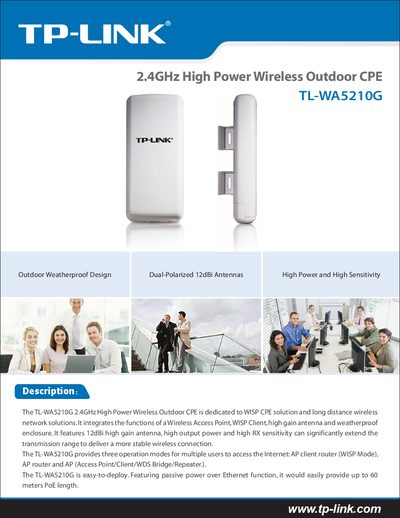

TL-WA5210G is a 2.4GHz high power wireless outdoor CPE device with strong signal coverage and high-speed transmission performance.
The TL‑WA5210G is a 2.4 GHz high‑power wireless outdoor CPE designed for WISP solutions and long‑distance wireless networks. It integrates a wireless access point, WISP client, 12 dBi dual‑polarized antenna and a weatherproof enclosure.
This guide covers the three operation modes (AP client router, AP router, AP/Client/WDS Bridge/Repeater), hardware specifications, PoE deployment, antenna alignment, environmental ratings, and regulatory certifications. It also lists the included accessories and provides quick installation steps.
| Frequency Range | 2.4‑2.4835 GHz |
|---|---|
| Wireless Transmit Power | Up to 2741 dBm |
| Antenna Gain | 12 dBi dual‑polarized |
| Horizontal Beamwidth | 60° |
| Vertical Beamwidth | 30° |
| Power Supply Output | 12 VDC / 1 A |
| Operating Temperature | -30 °C to 70 °C |
| Relative Humidity | 10 % – 90 % non‑condensing |
| Dimensions | 10.4 × 4.7 × 3.2 in (265 × 120 × 83 mm) |
| Interface | 10/100 M Auto‑Sensing RJ45 (Passive PoE) |
| Wireless Signal Rates (11g) | 108/54/48/36/24/18/12/9/6 Mbps (Dynamic) |
| Wireless Signal Rates (11b) | 11/5.5/3/2/1 Mbps (Dynamic) |
Yes, it features passive PoE and can be powered over Ethernet up to 60 meters.
The device uses a 12 dBi dual‑polarized aluminum antenna.
The unit operates from –30 °C to 70 °C and 10 % to 90 % relative humidity (non‑condensing).
