The document describes the features of the KLR-3001-000 1 SR3517 / SR3517(B) LED lamp, including red-colored diffusion lens, low power consumption, etc.

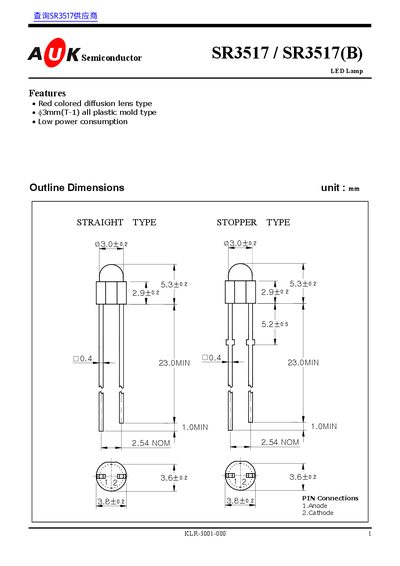

The SR3517 series LED lamp features a red‑colored diffusion lens, low power consumption and a compact plastic‑molded package. Dimensions and pin connections are provided for both straight‑type and stopper‑type packages.
The datasheet lists absolute maximum ratings such as 23 mW power dissipation, 10 mA forward current (50 mA peak) and a reverse voltage of 4 V, as well as detailed electrical characteristics including forward voltage, luminous intensity, peak wavelength and temperature limits.
| Power Dissipation | 23 mW |
|---|---|
| Forward Current (continuous) | 10 mA |
| Peak Forward Current | 50 mA |
| Reverse Voltage | 4 V |
| Operating Temperature Range | -25 °C to 85 °C |
| Storage Temperature Range | -30 °C to 100 °C |
| Soldering Temperature | 260 °C for 5 s |
| Forward Voltage (5 mA) | 1.9 V – 2.5 V |
| Peak Wavelength (5 mA) | 700 nm |
| Spectrum Bandwidth (5 mA) | 100 nm |
| Reverse Current (Ve=4 V) | ≤10 µA |
| Half‑Angle | ≈30.5° |
The device is rated for a continuous forward current of 10 mA.
A peak forward current of 50 mA is permitted.
The LED lamp operates from –25 °C up to 85 °C.
