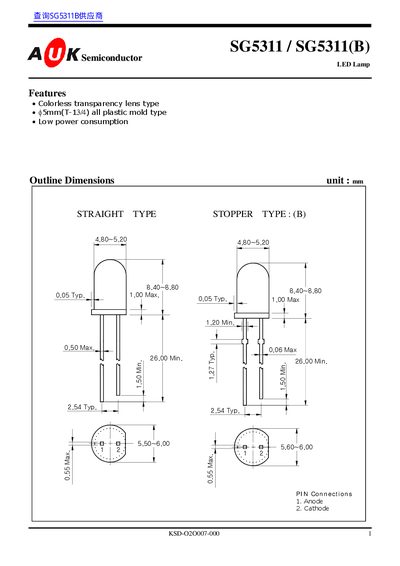

The document describes the features of SG5311/SG5311(B) LED lamp, including colorless transparency, outline dimensions, pin connections, absolute maximum ratings, and electrical/optical characteristics.
This document provides technical specifications for the AUK SG5311 and SG5311(B) LED lamps. These are T-1 3/4 all-plastic mold type components featuring a colorless transparency lens with low power consumption.
The datasheet outlines physical dimensions for both straight and stopper (B) types, along with absolute maximum ratings such as forward current and operating temperature ranges. It also lists electrical and optical characteristics including forward voltage, luminous intensity, peak wavelength, and spectrum bandwidth.
| Lens Type | Colorless transparency lens type |
|---|---|
| Package Type | T-1 3/4 all plastic mold type |
| Power Dissipation | 75 mW |
| Forward Current (Continuous) | 30 mA |
| Peak Forward Current | 50 mA |
| Reverse Voltage | 4 V |
| Operating Temperature Range | -25~85 °C |
| Luminous Intensity Range | 27 - 155 mcd |
| Peak Wavelength Range | 557 - 563 nm |
Pin 1 is the Anode and Pin 2 is the Cathode.
Yes, the (B) version is designated as the STOPPER TYPE.
The device operates between -25°C and 85°C.
