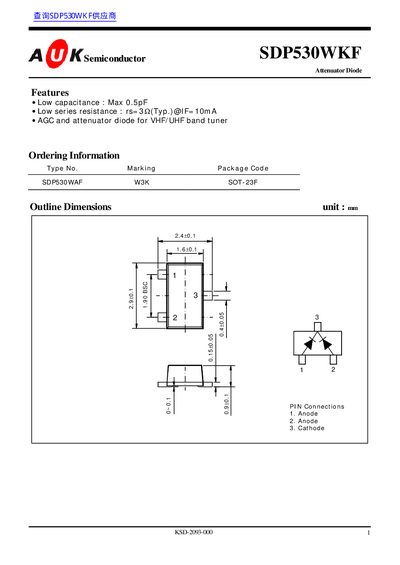

This document describes the features of the KSD-2093-000 1 SDP530WKF attenuator diode, including low capacitance and low series resistance.
This document is a technical datasheet for the AUK Semiconductor SDP530WKF, an attenuator diode designed for VHF/UHF band tuners. Key features include low capacitance (maximum 0.5pF) and low series resistance.
The datasheet provides absolute maximum ratings such as a continuous reverse voltage of 50V and a forward current of 50mA, along with electrical characteristics including reverse current, forward voltage, and total capacitance under specific test conditions.
| Max capacitance | 0.5pF |
|---|---|
| Typical series resistance | 3Ω |
| Continuous reverse voltage | 50 V |
| Forward current | 50 mA |
| Junction temperature | 150 °C |
The absolute maximum rating for continuous reverse voltage is 50 V.
The typical series resistance is 3 Q when the forward current is 10 mA.
The device can be stored between -55 °C and 150 °C.
