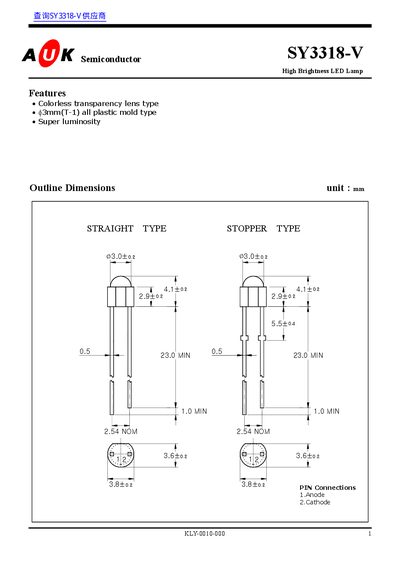

This document describes the features and characteristics of the KLY-0010-000 1 SY3318-V high brightness LED lamp. The LED lamp features colorless transparency lens, φ3mm(T-1) all plastic mold type, and super luminosity.
This document is a technical datasheet for the AUK Semiconductor SY3318-V, a high brightness LED lamp featuring a colorless transparency lens and an all-plastic mold type design. The device utilizes a 3mm (T-1) package with straight or stopper types available.
| Package Type | 3mm (T-1) all plastic mold type |
|---|---|
| Lens Color | Colorless transparency |
| Power Dissipation | 85 mW |
| Forward Current (Continuous) | 30 mA |
| Peak Forward Current | 50 mA |
| Operating Temperature Range | -25 ~ 85 C |
| Peak Wavelength | 592 nm |
The device can operate at temperatures up to 85 degrees Celsius.
The absolute maximum rating for power dissipation is 85 mW.
The device operates between -25°C and 85°C, and stores between -30°C and 100°C.
The typical peak wavelength for this lamp is 592 nm.
