This document describes the features and characteristics of the KSD-2002-001 SDS915 switching diode, including SMD package, low forward voltage, fast reverse recovery time, and small total capacitance.

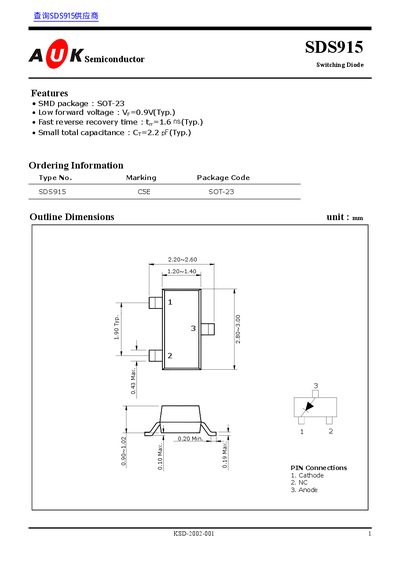

This document is a technical datasheet for the AUK SDS915 switching diode. It provides key features such as an SOT-23 package, low forward voltage of approximately 0.9V, and fast reverse recovery time of 1.6ns.
The publication includes absolute maximum ratings like a peak reverse voltage of 85V and power dissipation up to 150mW. It also lists electrical characteristics including forward voltage drop at various currents, total capacitance, and reverse current specifications.
| Package Type | SOT-23 |
|---|---|
| Typical Forward Voltage (Vf) | 0.9 V |
| Typical Reverse Recovery Time (trr) | 1.6 ns |
| Typical Total Capacitance (Ct) | 2.2 pF |
| Peak Reverse Voltage (Vrrm) | 85 V |
| Average Forward Current (Io) | 100 mA |
The marking code is C5E and it uses an SOT-23 package.
Pin 1 is Cathode, Pin 2 is NC (No Connection), and Pin 3 is Anode.
The maximum junction temperature rating is 150 °C.
