SPG3317-H/SPG3317-H(B) is a high brightness LED lamp with colorless transparency lens type. It has a φ3mm(T-1) all plastic mold type and super luminosity. The forward voltage is 2.8-3.6V, luminous intensity is 1170-3960 mcd, dominant wavelength is 519-530nm, and spectrum bandwidth is -30-nm.
This handbook describes the SPG3317-H (and SPG3317-H(B)) LED component produced by AUK Corp. It is intended for use in general electronic equipment such as office, communication, measuring, and home‑appliance devices.

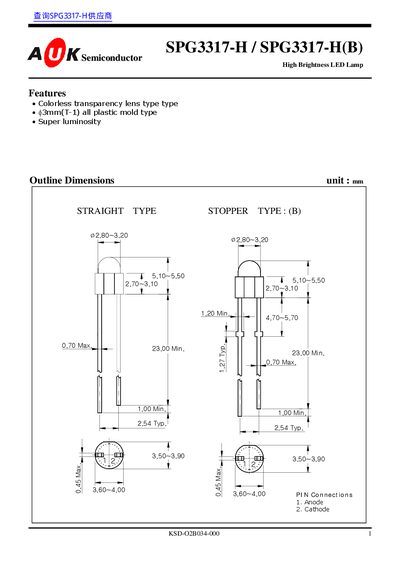

Key specifications include power dissipation of 70 mW, forward current of 20 mA (peak 50 mA), reverse voltage of 4 V, operating temperature from –25 °C to 85 °C, and luminous intensity ranging from 1170 mcd to 3960 mcd at 20 mA. Dimensional data and characteristic diagrams are also provided.
| Power dissipation | 70 mW |
|---|---|
| Forward current | 20 mA |
| Peak forward current | 50 mA |
| Reverse voltage | 4 V |
| Operating temperature range | -25~85 °C |
| Soldering temperature | 260 °C for 10 s |
| Forward voltage (20 mA) | 2.8 V – 3.6 V |
| Luminous intensity (20 mA) | 1170 mcd – 3960 mcd |
| Dominant wavelength (20 mA) | 519 nm – 530 nm |
| Spectrum bandwidth (20 mA) | 30 nm |
The peak forward current is 50 mA.
It operates from –25 °C to 85 °C.
The forward voltage is between 2.8 V and 3.6 V at 20 mA.
The luminous intensity ranges from 1170 mcd to 3960 mcd at 20 mA.
