SRC1202K is a NPN Silicon Transistor with built-in bias resistors. It is suitable for switching application, interface circuit and driver circuit application.

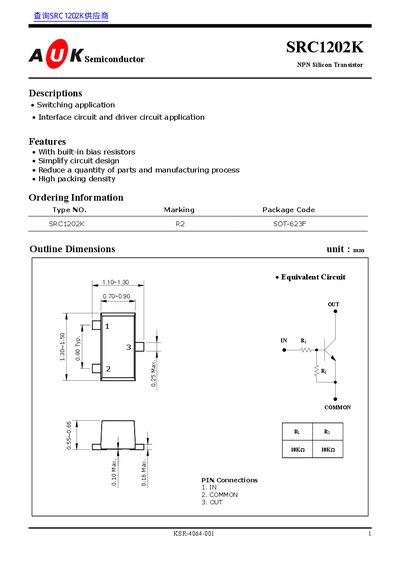

This document is a datasheet for the AUK SRC1202K, an NPN silicon transistor designed for switching applications, interface circuits, and driver circuits. Key features include built-in bias resistors to simplify circuit design and reduce component count, as well as high packing density in the SOT-623F package.
The datasheet provides absolute maximum ratings, such as an output voltage of 50V and a power dissipation of 100mW. It also lists specific electrical characteristics at 25°C, including DC current gain, transition frequency, and various input/output voltage and current parameters.
| Package Code | SOT-623F |
|---|---|
| Output voltage | 50 V |
| Input voltage | 30,-10 V |
| Output current | 100 mA |
| Power dissipation | 100 mw |
| Junction temperature | 150 °C |
| DC current gain | 50 to 80 |
| Transition frequency | 200 MHz |
The storage temperature range is from -55°C to 150°C.
The maximum output voltage is 50 V.
The maximum power dissipation is 100 mW.
The typical DC current gain is 80.
